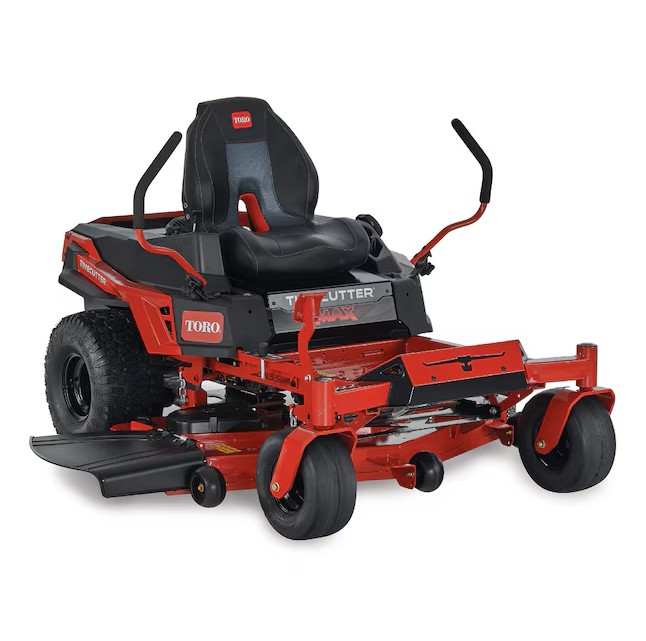

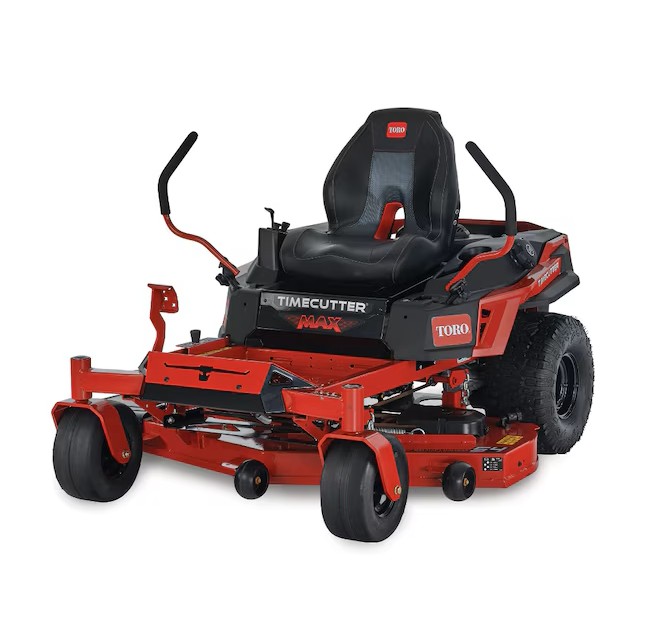

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.

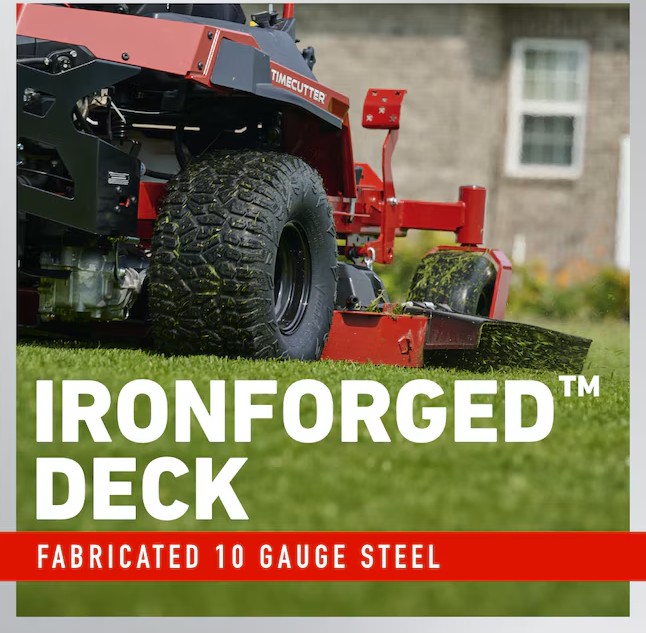

• Its heavy duty steel IronForged™ Deck doesn't flinch no matter what you throw its way

• Get the pro-level power, durability, and precision to take on big acreage with thicker steel and lightning-fast blades

• Premium 23HP, 726cc Kawasaki V-Twin engine gives you the power to Rule the Land

• Any cut height, on the go - the deck lift pedal lets you save your deck without breaking a sweat for easy height-of-cut adjustment.

• Take your throne - the 19 in handcrafted high-back gaming style seat delivers ridiculous comfort and insane back support.

• Ultimate Traction - massive 20" Voodoo X508 drive tires feature wide aggressive tread that delivers ultimate traction.

• Automotive Style Fuel Fill - fewer spills and less mess with automotive style fueling and a larger 5 gallon tank.

• Shuts down sprayback - spray blocking fenders keep tire spray off your engine, and more importantly, you.

• Stay hydrated, keep crushing - the built-in drink holder keeps your beverage handy so you can keep powering through.

Technical Specifications

• Engine: 23 HP Kawasaki FR691V V-Twin, 726cc

• Fuel Type: Gasoline

• Fuel Capacity: 5 gallons (18.9 liters)

• Cutting Deck: 54-inch (137 cm) IronForged® 10-gauge steel

• Blades: 3

• Blade Tip Speed: 17,700 ft/min (5,395 m/min)

• Cutting Height Range: 1.0 to 5.0 inches (2.5 to 12.7 cm), adjustable via foot pedal

• Transmission: Dual Hydrostatic HG-EZT2200

• Drive Type: Rear-Wheel Drive

• Forward Speed: Up to 7.0 mph (11.2 km/h)

• Rear Tires: 20 x 10-8 inches

• Front Tires: 12 x 6-5 inches

• Frame: 3 x 1.5-inch tubular steel

• Seat: 19-inch gaming-style seat

• Comfort Platform: Standard Suspension

• Weight: 653 lbs (296.2 kg)

• Start Type: Electric

• Steering Controls: Twin Lever

• Washout Port: Standard

• Optional Features: Armrests, Hour Meter, Lighting, Roll-Over Protection System (ROPS)
